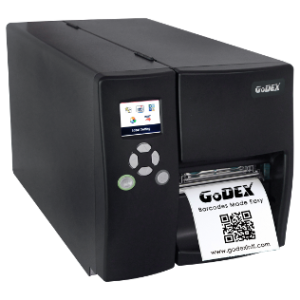

Godex EZ6350i (6 Inch)

EZ6250i which has faster printing speed to reach 7 IPS for 203 dpi resolution, Larger flash memory to 8 MB and build in USB host to support various applications.

• Available for 203 dpi (8 dots/mm) and 300 dpi (12 dots/mm) resolution
• Intelligent Color LCD panel for easy configuration.
• Robust metal casing and a solid print mechanism to take on heavy duty jobs
• Calibration button makes label Calibration simple and fast
• Multiple interfaces for multiple requirements
• USB Host for extension memory and standalone operation
• Automatic self-adjustment for coated inside/outside ribbons
• Supports 450-meter ribbon capacity and 8-inch diameter label (3″core) for bulk printing.

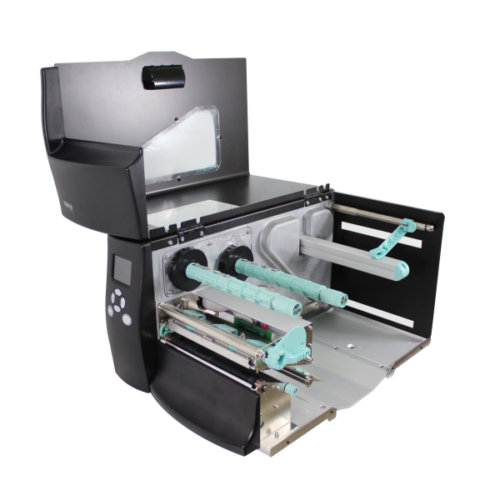

• Modular TPH- easy to do the maintenance

Technical DetailsApplicationsGoLabelDownloads

Print Method: Thermal Transfer / Direct Thermal

Resolution: 300 dpi (12 dot/mm)

Print Speed: 5 IPS (127 mm/s)

Print Width: 6.61” (168 mm)

Print Length: Min. 0.16” (4 mm)** ; Max. 70” (1778 mm) / Min. 0.16” (4 mm)** ; Max. 30” (762 mm)

Processor: 32-bit RISC CPU

Memory: Flash 8 MB Flash (4 MB for user storage) SDRAM 32 MB

Interfaces: • USB 2.0 (B-Type) • Serial port: RS-232 (DB-9) • IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45) • USB Host (A-Type)

Ribbon: Length Max. 1471’ (450 m) Width Min 2.36” – Max. 6.85” (60 mm – 174 mm) Ribbon roll diameter 2.99” (76 mm) Max Core diameter 1” (25.4 mm)

Control Panel: • Color TFT LCD with navigation button • Calibration button • Power on/off button

Heavy duty industrial printer. Full metal construction industrial printer. Fast through put, solid printing, reliable and easy to use in industrial applications.

• Retail
• Warehouse
• Manufacturing

GoLabel is a fully professional label design and print software formulated to work with any GoDEX printer. WSYWIG user interface makes GoLabel intuitive and easy to use. Fully functional including:

• Database printing
• Rich Text Editor including Auto Word Bold Function, perfect for Allergens
• Barcodes including all major symbols such as retail (EAN-13) Code128, Code39, QR Codes and more
• Built in stand alone functions. No special software or keyboard needed (certain models only)

GoDEX EZ6250i / EZ6350i Datasheet
